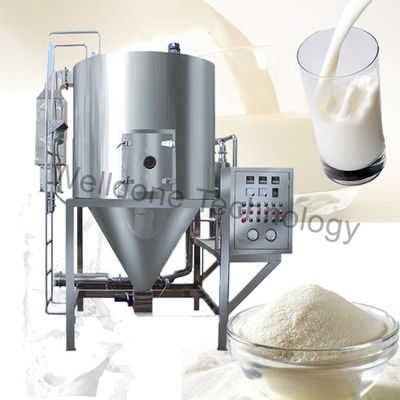

10000KGS/H SUS316L Milk Spray Dryer Machine Independent Control System

Description of Environmental Friendly High Efficient Milk Spray Dryer Machine

Spray drying equipment is widely used in liquid forming and drying industry.Suitable for producing powder and granular solid products from solution, emulsion, suspension and paste liquid raw materials.

Therefore, when the shape of finished product must form a fixed standard, spray dryer is the most professional and suitable drying equipment.

Principle of Environmental Friendly High Efficient Milk Spray Dryer Machine

After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Feature of Environmental Friendly High Efficient Milk Spray Dryer Machine

1. Main structure is highi-quality SUS 304 and SUS 316L stainless steel.

2. Independent control system, equipped with touch screen control panel.

3. Completely simulate the industrial production spray dryer in the laboratory.

4. The operator can view all processing and all parameters can be adjusted depend on actual need on the touch screen, such as: speed of peristaltic pump, Inlet temperature of air, etc.

5. Collecting device is made by transparent heat-resistant borosilicate glass It can gurantee the drying process in no contamination and stable environment.

6. Only need 30ml of original material to complete an experiment.

7. SUS316L stanless steel fluid nozzle.

8. Built-in imported air compressor, noise less than 50db.

Technical Parameters of Environmental Friendly High Efficient Milk Spray Dryer Machine

Picture of Environmental Friendly High Efficient Milk Spray Dryer Machine

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
