Remote Control Atomizing Spray Dryer In Pharmaceutical Industry



Description of Remote Control Atomizing spray dryer in pharmaceutical industry

Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity and solubleness.

This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.

Principle of Remote Control Atomizing spray dryer in pharmaceutical industry

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry whey powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.

Feature of Remote Control Atomizing spray dryer in pharmaceutical industry

High drying efficiency

The finished power or granule has good homogeneity, fluidity and solubility.

Simple and convenient operation

Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fog drop is uniform.

The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air. .

Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.

Wide application: food, chemicals, ceramics, basic dyestuff, etc.

Technical Parameters of Remote Control Atomizing spray dryer in pharmaceutical industry

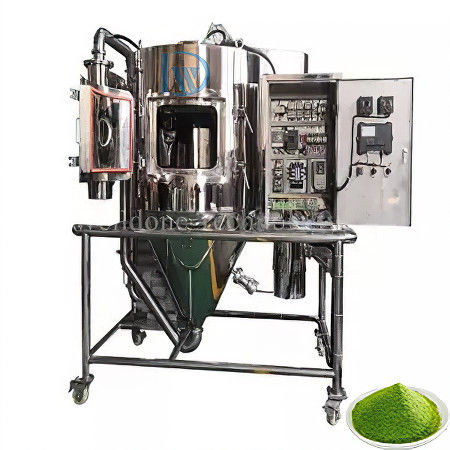

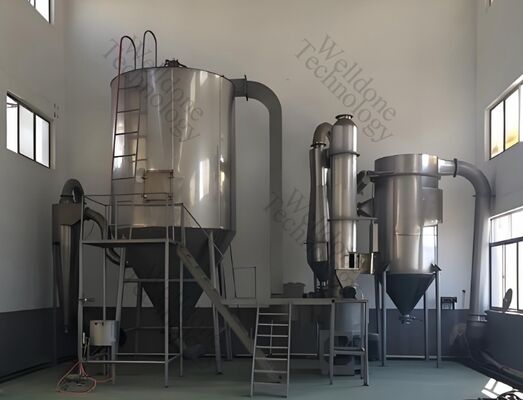

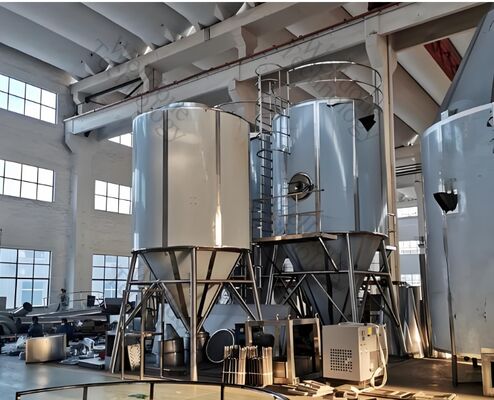

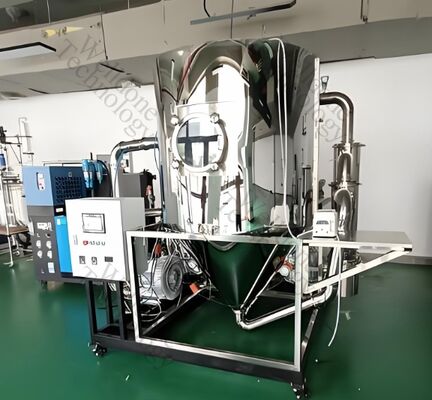

Picture of Remote Control Atomizing spray dryer in pharmaceutical industry

After Sell Service

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design



Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing



Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
